HD-550 Roll Fed Square Bottom Paper Bag Making Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Information
Properties and uses:

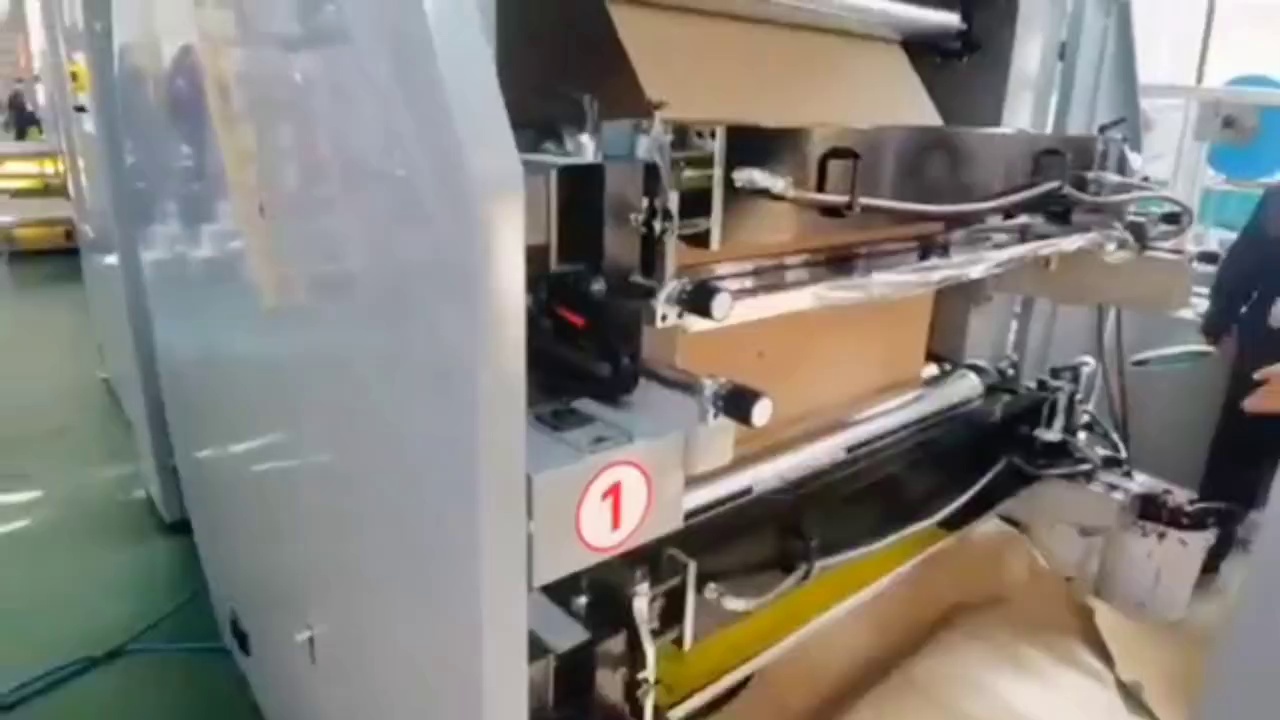

Introducing the roll fed square bottom paper bag machine. The material can be paper roll or printed paper roll. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for shopping, loading foods, sugar, flour and so on.
Its user-friendly interface and intuitive controls make it easy for operators to operate and maintain, minimizing downtime and maximizing productivity.
Whether your customers are retail stores, bakeries, grocery stores or branded fast food coffee chains, our paper bag machines are ideal for improving your packaging operations. It can meet your various requirements of the size of the paper bags.
Introducing the roll fed square bottom paper bag machine. The material can be paper roll or printed paper roll. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for shopping, loading foods, sugar, flour and so on.
Its user-friendly interface and intuitive controls make it easy for operators to operate and maintain, minimizing downtime and maximizing productivity.
Whether your customers are retail stores, bakeries, grocery stores or branded fast food coffee chains, our paper bag machines are ideal for improving your packaging operations. It can meet your various requirements of the size of the paper bags.
Sample bag photos HD-550 (handles must be pasted manually).
Technical Parameters
|
Machine Model |
HD-550 |
|
Paper Roll Width |
570-1450mm |
|
Paper thickness |
80-150 gsm |
|
Paper Bag Width |
190-550 mm |
|
Paper Tube Length |
330-750 mm |
|
Bag Bottom Width |
80-250 mm |
|
Speed |
50-110 Bags/min. |
|
Max. Roll material diameter |
￠1200 mm |
|
Material Core Diameter |
￠76mm(3″) |
|
Total Power |
20KW |
|
Machine Weight |
14000KG |
|
Machine Dimension (L*W*H) |
13500x2500x2500mm |
