HD-200 Roll Fed S.O.S Square Bottom Paper Bag Making Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Information
Properties and uses:

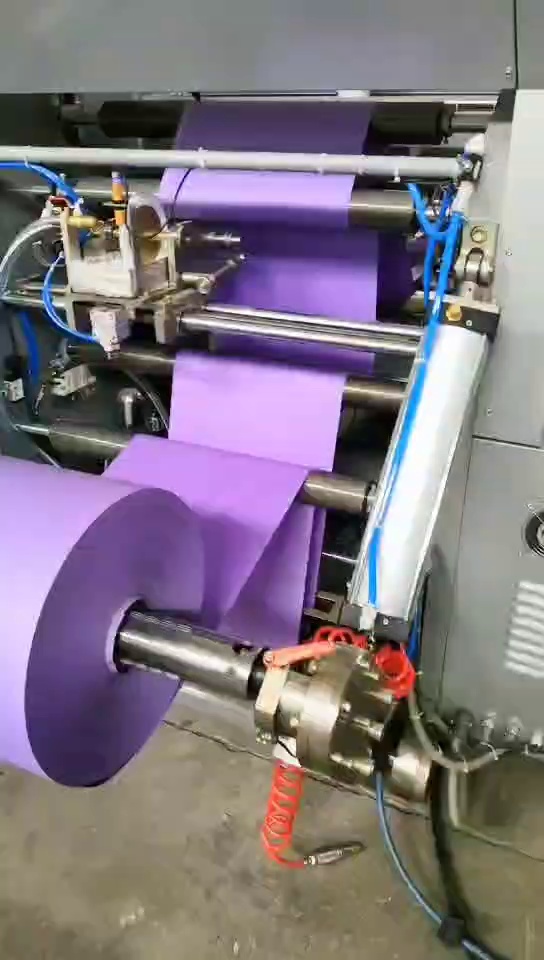

This machine is built to make shopping bags or food bags with paper rolls, paper can be printed. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for grocery, loading foods, sugar, flour and so on.
This machine is built to make shopping bags or food bags with paper rolls, paper can be printed. Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke. This is ideal equipment for making paper bag for grocery, loading foods, sugar, flour and so on.
Technical Parameters
|
Machine Model |
HD-200 |
|
Paper Roll Width |
285-645mm |
|
Paper thickness |
50-120 gsm |
|
Paper Bag Width |
80-200 mm |
|
Paper Tube Length |
170-370 mm |
|
Bag Bottom Width |
50-110 mm |
|
Speed |
80-200 Bags/min. |
|
Max. Roll material diameter |
￠1200 mm |
|
Material Core Diameter |
￠76mm(3″) |
|
Total Power |
10KW |
|
Machine Weight |
6000KG |
|
Machine Dimension (L*W*H) |
6500x1800x1900mm |
