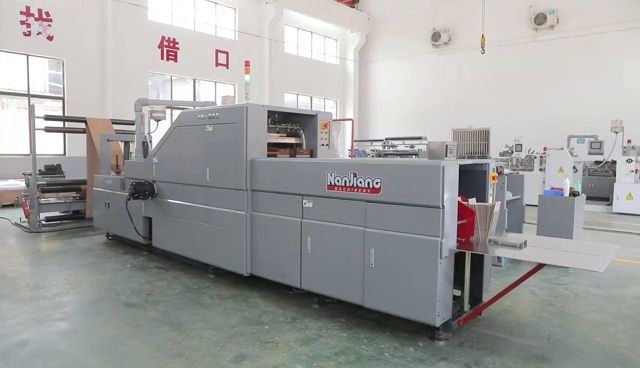

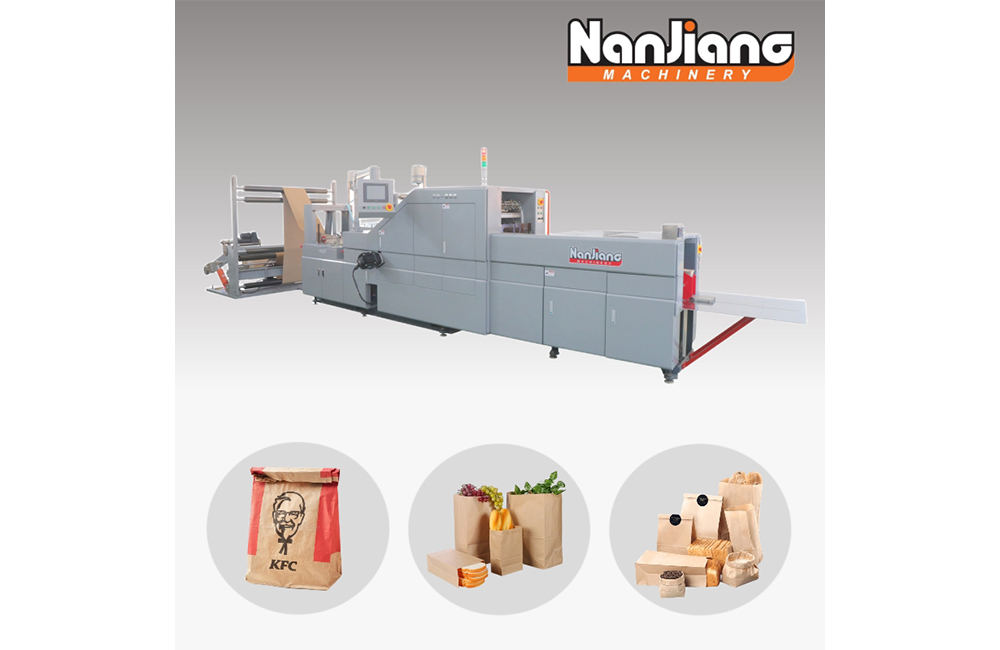

HD-260 Roll Fed S.O.S Square Bottom Paper Bag Making Machine
Properties and uses:
This model is our new generation of high-speed square bottom paper bag machine. It has the advantages of fast speed,high production efficiency and wide adjustment range, and has international advanced technology. It is the crystallization of all paper bag machine products at home and abroad. This machine automatically hydraulically feeds the original color or printed roll paper, glues the upper edge, makes the tube, cuts the bottom, indents the bottom, glues the bottom, forms the bottom of the bag, and outputs the finished bag. The computer central control system, the process consists of Human-machine interface touch screen display, PLC control, and the length of paper bags are controlled by servo motor, which can produce paper bags of various specifications.
Machine Model |
HD-260 |
Paper Roll Width |
345-765mm |
Paper thickness |
60-150 gsm |
Paper Bag Width |
100-260 mm |
Paper Tube Length |
250-500 mm |
Bag Bottom Width |
60-110 mm |
Speed |
≤ 230Bags/min. |
Max. Roll material diameter |
¢1200 mm |
Material Core Diameter |
¢76mm(3″) |
Total Power |
15KW |
Machine Weight |
7000KG |
Machine Dimension (L*W*H) |
7800x2600x2000mm |
