Properties and uses:
This is ideal equipment for making paper bag for shopping, loading foods, sugar, flour and so on. It is widely used in all kinds of shopping bags, bread bags, takeaway bags, fast food bags, food bags and so on.

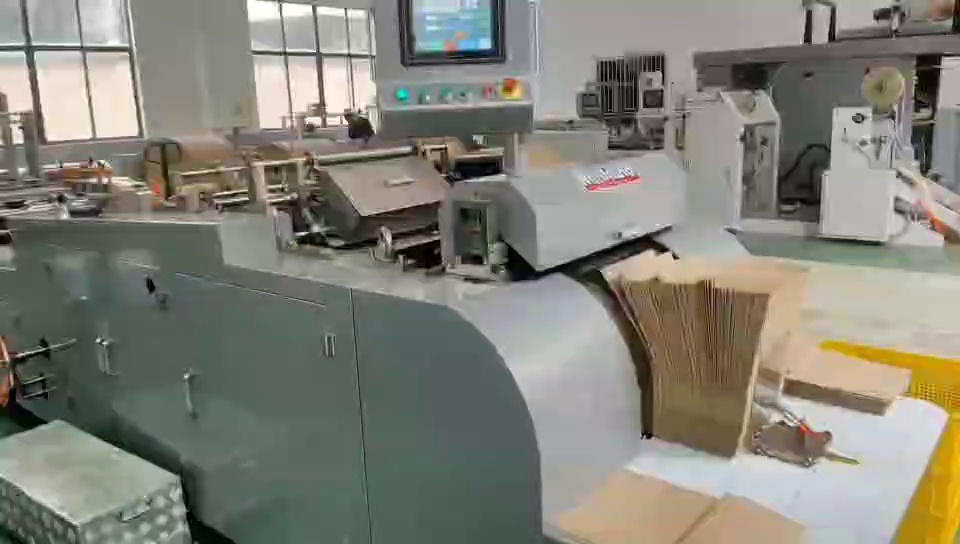

Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke.
If you are equipped with a separate handle making machine, paper shopping bags used for carrying the goods after paste handles.
This is ideal equipment for making paper bag for shopping, loading foods, sugar, flour and so on. It is widely used in all kinds of shopping bags, bread bags, takeaway bags, fast food bags, food bags and so on.
Machine is equipped with a photocell device. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom-sticking and bag forming at a stroke.
If you are equipped with a separate handle making machine, paper shopping bags used for carrying the goods after paste handles.
Sample bag photos HD-430 (handles must be pasted manually).
Technical Parameters
|
Machine Model |
HD-430 |
|
Paper Roll Width |
510-1230mm |
|
Paper thickness |
70-150 gsm |
|
Paper Bag Width |
160-450 mm |
|
Paper Tube Length |
270-600 mm |
|
Bag Bottom Width |
80-200 mm |
|
Speed |
70-130 Bags/min. |
|
Max. Roll material diameter |
￠1200 mm |
|
Material Core Diameter |
￠76mm(3″) |
|
Total Power |
16KW |
|
Machine Weight |
10000KG |
|
Machine Dimension (L*W*H) |
12500x2300x2000mm |
