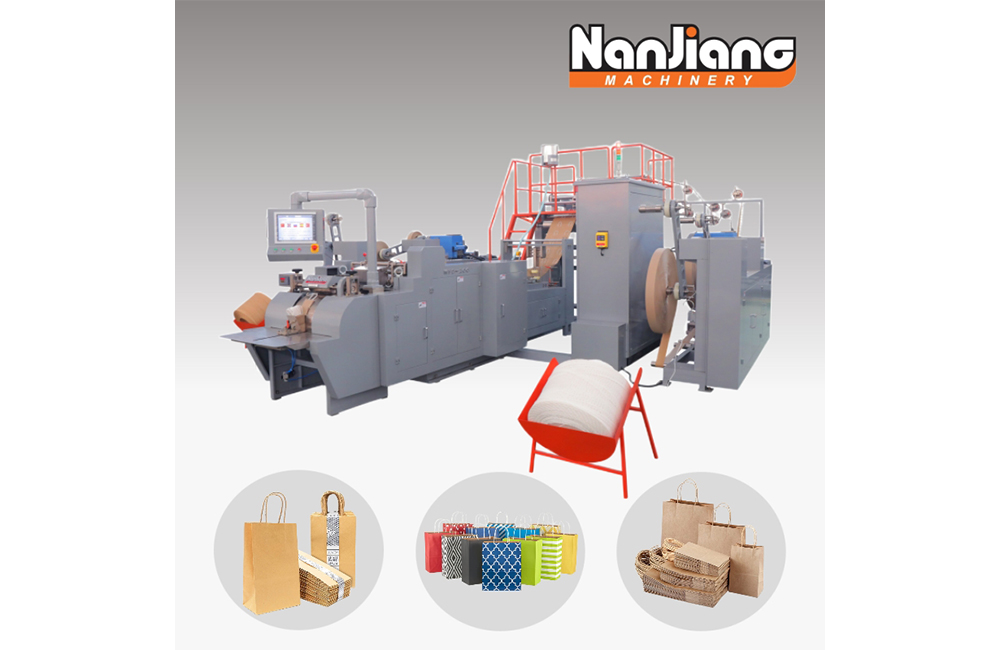

WFD-120 Fully Automatic Roll Fed Paper Bags With Twisted Handle Machine
Properties and uses:
This is special machine for the production of shopping bags (block bottom bags) with twisted rope handle made of paper. The material can be paper roll or printed paper roll.
If you want to produce paper bags in small sizes, it is the ideal equipment for you. It is designed to handle various paper thicknesses and sizes, providing flexibility to cater to different bag specifications. This model can be adjusted between 120mm-200mm bag width and 55mm-110mm bottom width.

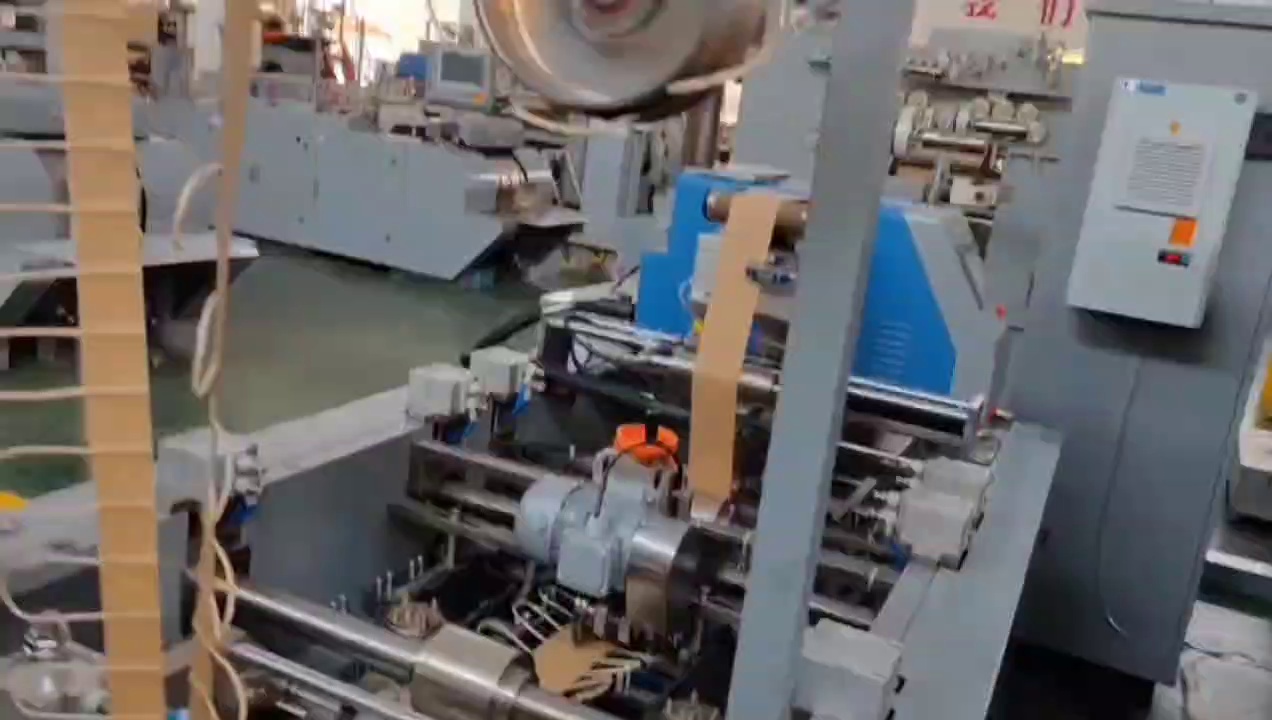

It can produce variable sizes paper bag and paste paper handle inline for completely paper bags without any manual process. The machine automatic paper fed from roll, tube forming, cut-off, bottom forming, bottom glue, bag forming and final bag output. Whole machine is controlled by computer central control system with touch screen and servo motor for cut-off length control.
|
Machine Model |
WFD-120 |
|
Paper Roll Width |
375-645mm |
|
Paper Bag Width |
120-200 mm |
|
(if without handle) |
(80-200 mm) |
|
Paper Tube Length |
200-300mm |
|
(if without handle) |
(170-370 mm) |
|
Bag Bottom Width |
55-110 mm |
|
Paper Thickness |
80-120gsm |
|
(if without handle) |
(50-120 gsm) |
|
Max. Roll material diameter |
￠1200 mm |
|
Material Core Diameter |
￠76mm(3″) |
|
Length of twisted rope (customizable) |
300-400 mm |
|
Diameter of Twisted Rope |
4-6 mm |
|
Handle Patch Length |
95 mm |
|
Handle Patch Width |
35-50 mm |
|
Handle patch Roll Diameter |
￠1000 mm |
|
Paper Patch Roll Width |
70-100 mm |
|
Paper GSM for Handle patch |
110-250gsm |
|
Speed |
70-150Bags/min. |
|
Total Power |
30KW |
|
Machine Weight |
15000KG |
|
Machine Dimension (L*W*H) |
11000 x 4500 x 2600 mm |
