WFD-100 High-speed Paper Handle Making Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Information
Properties and uses:

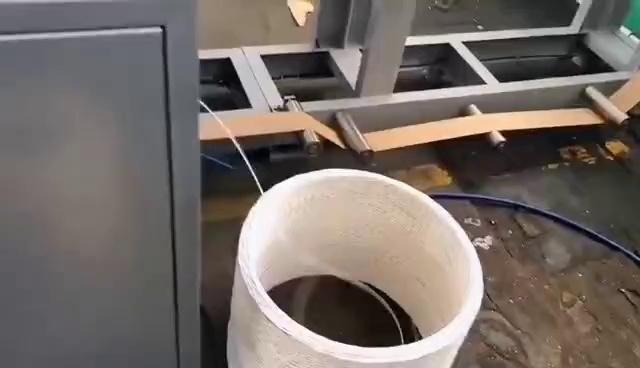

This is latest high-speed machine for producing paper handles, it pastes twist paper ropes and paper together for forming handles, and then cut off them in separate automatically, Besides, it has the functions of handles counting, handles putting in order and handles collecting. It is an ideal supporting machine of Paper Handbag Making Machine.
This is latest high-speed machine for producing paper handles, it pastes twist paper ropes and paper together for forming handles, and then cut off them in separate automatically, Besides, it has the functions of handles counting, handles putting in order and handles collecting. It is an ideal supporting machine of Paper Handbag Making Machine.
-
B1
-
B2
Technical Parameters
|
Machine Model |
WFD-100 |
|
A. Handle length |
105-155mm |
|
B. Handle width |
65mm/95mm |
|
C. Paper board width |
40-55mm |
|
D. Paper board length |
125mm/190mm |
|
E. Paper board weight |
100-120g/㎡ |
|
F. Rope diameter |
3-5mm |
|
Maximum Speed |
300-500 pcs/min |
|
Total Power (kw) |
5KW |
|
Machine Weight (Ton) |
2 T |
|
Machine Dimension (L*W*H) |
5000*1200*1400mm |
|
Machine Dimension (L*W*H) |
5000*1800*1800mm |
