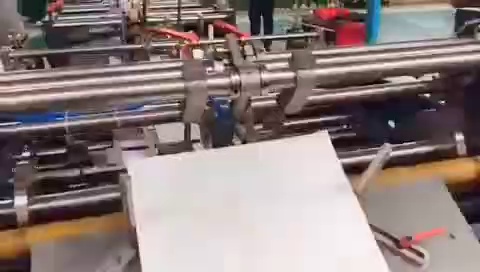

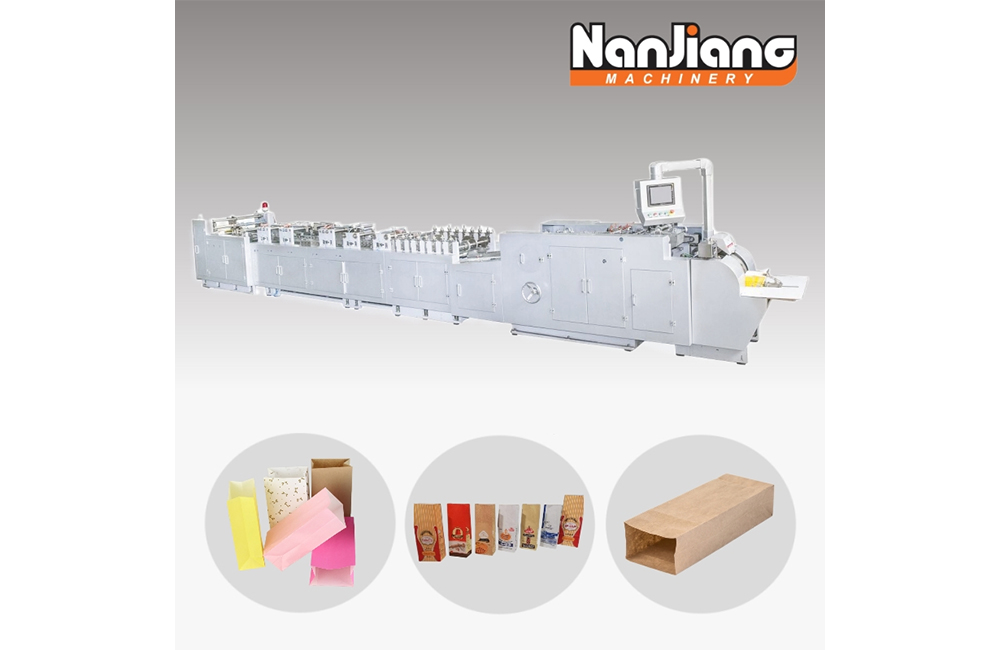

HD-180 Sheet Feeding Paper Paper Bag Machine
Properties and uses:
Having absorbed the new technology of domestic and abroad, we successfully developed a new kind of paper bag making machine. The materials should be printed sheet paper or non printed sheet paper as per end-user's preference. This machine features a continuous function of automatic paper feeding, gluing, creasing, bottom pasting and bag formation and double side double-sided tape seal with flap. It is an ideal equipment for courier paper bags, documents, Gifts,etc without any manual process.
|
Machine Model |
HD-180 |
|
Min. Paper size |
325x170mm |
|
Max. Paper size |
645x370mm |
|
Paper Thickness |
70-150gsm |
|
Paper Bag Width |
100-200mm |
|
Bag Tube Length |
170-370 mm |
|
Bag Bottom Width |
50-110mm |
|
Speed |
50-90Bags/min. |
|
Total Power |
12KW |
|
Machine Weight |
7000KG |
|
Machine Dimension (L*W*H) |
9000 x 1600 x 1500 mm |
|
Type of Glue |
(Cold & Hotmelt Glue) |
