WFD-430 Fully Automatic Roll Fed Paper Bags With Twisted & Flat Handle Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Information

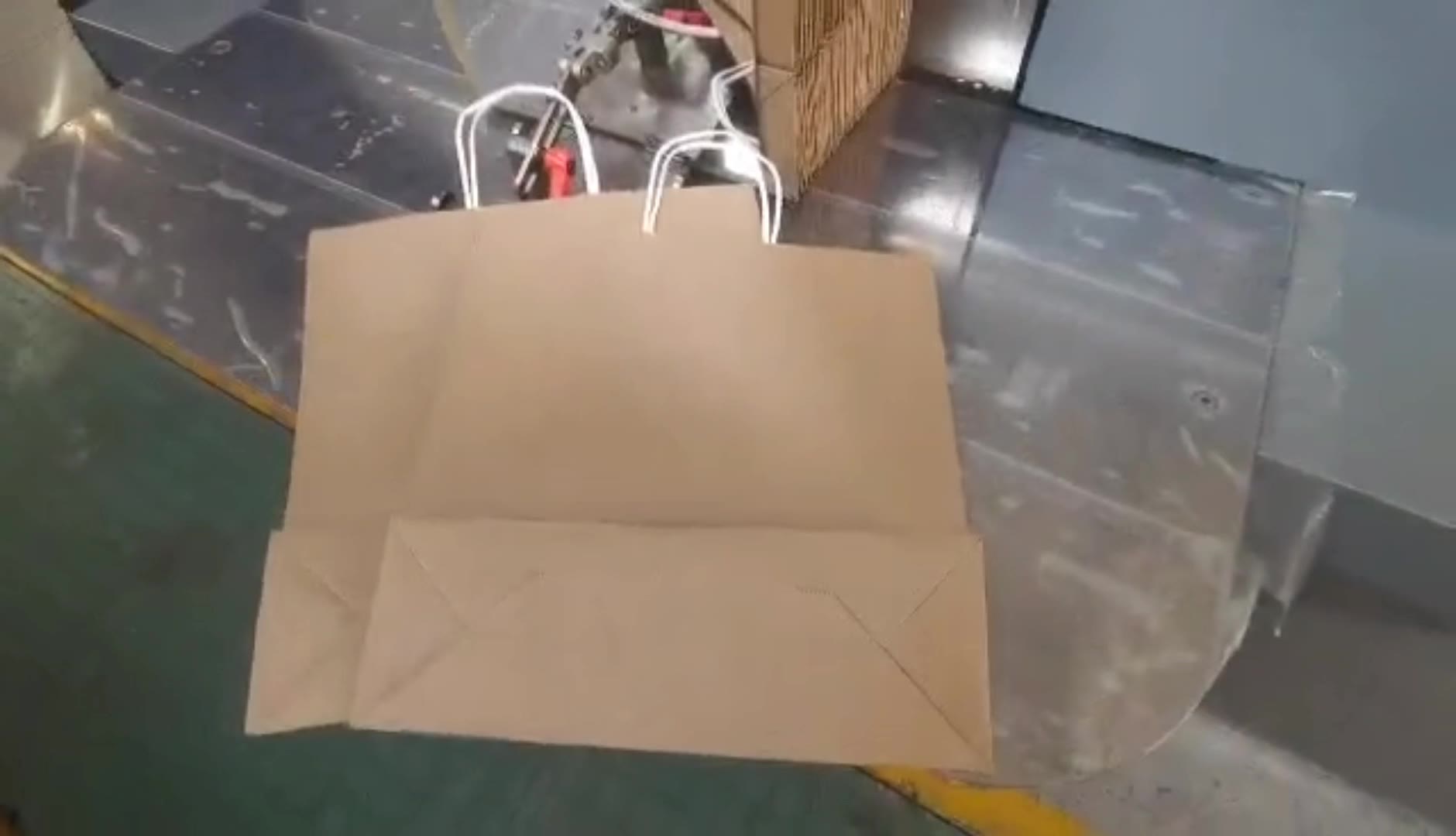

This is special machine for the production of shopping bags (block bottom bags) with twisted rope handle or flat belt handle made of paper. The material can be paper roll or printed paper roll. Whole machine is controlled by computer central control system with touch screen and servo motor for cut-off length control.
It can produce variable sizes paper bag and paste paper handle inline for completely paper bags without any manual process. The machine automatic paper fed from roll, tube forming, cut-off, bottom forming, bottom glue, bag forming and final bag output. All steps are completed in-line; this machine is an idea equipment for Twist & Flat handle square bottom paper bag. It is the quintessence both of home and abroad.
It can produce variable sizes paper bag and paste paper handle inline for completely paper bags without any manual process. The machine automatic paper fed from roll, tube forming, cut-off, bottom forming, bottom glue, bag forming and final bag output. All steps are completed in-line; this machine is an idea equipment for Twist & Flat handle square bottom paper bag. It is the quintessence both of home and abroad.
Technical Parameters
|
Machine Model |
WFD-430 |
|
Paper Roll Width |
630-1330mm |
|
Paper Bag Width |
220-450 mm |
|
Paper Tube Length |
270-560mm |
|
Bag Bottom Width |
80-200 mm |
|
Paper Thickness |
80-150gsm |
|
Max. Roll material diameter |
￠1200 mm |
|
Material Core Diameter |
￠76mm(3″) |
|
Length of twisted rope (customizable) |
300-400 mm |
|
(Diameter of Twisted Rope) |
4-6 mm |
|
Handle Patch Length |
190 mm |
|
Handle Patch Width |
35-50 mm |
|
Handle patch Roll Diameter |
￠1000 mm |
|
Paper Patch Roll Width |
70-100 mm |
|
Paper GSM for Handle patch |
110-250gsm |
|
Speed |
70-110Bags/min. |
|
Total Power |
33KW |
|
Machine Weight |
19000KG |
|
Machine Dimension (L*W*H) |
16000 x 4800 x 2600 mm |
